Print

Model

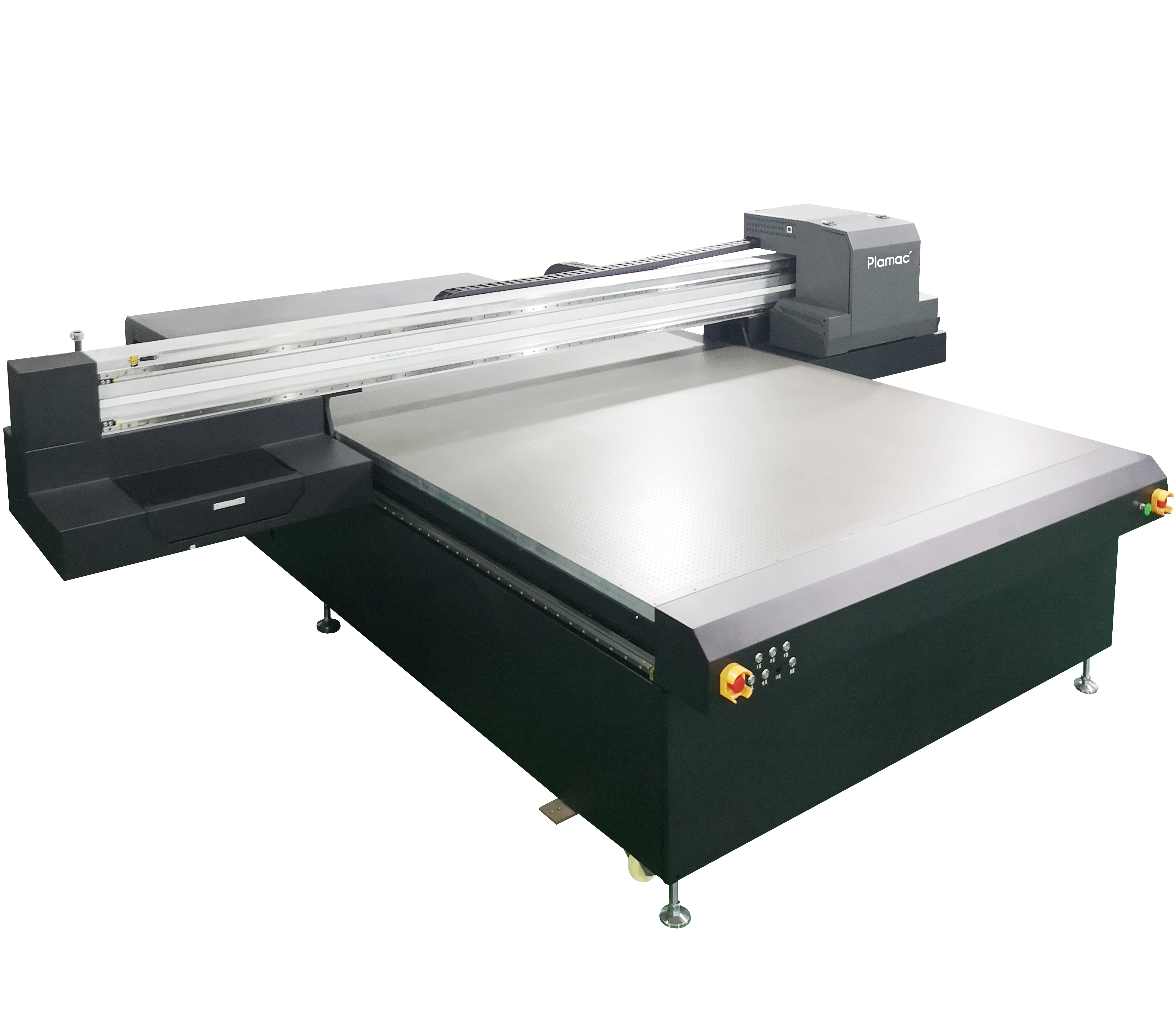

MORPHO 2036UV

Print Size

2050*3600mm

Print Head

4~9industrial print head

High Speed

Production

Quality

Super

44sqm/h         62sqm/h          80sqm/h

30sqm/h         46sqm/h          56sqm/h

22sqm/h         30sqm/h          40sqm/h

15sqm/h         23sqm/h          28sqm/h

Resolution

Up to 1200dpi

Print Technology

Piezoelectric inkjet, Grayscale Technology

Ink Types

LED UV curable ink

Ink Configuration

Standard CMYK, Lc, Lm, White, Vanish(Optional)

Ink cartridge size

2.5 Liter

Image process Software

Aurelon , Caldera, Onyx Optional

Color management

ICC based color, adjustment curves, density adjustment

Operating System

Windows 10 64bits USB2.0/3.0 Hard Ware 500G+

File format

Tiff, Jpeg, Postscript, EP/ PDF, etc

Media

Media Thickness

0-10cm

Platform

Divided into 4 independent suction area for various media size printing

Media

Acrylic, wood, glass, ceramic, metal, PVC, industrial film, etc

Ink Supply

Negative pressure system

Ink level sensor to alarm

Curing System

LED UV lamps

Dimensions

Printer

5172mm(L)*4170mm(W)*1478mm(H)

Package

5000mm(L)*2250mm(W)*1890mm(H)

Weight

Printer

1750 KG

Package

2280 KG

Operating Conditions

Temperature

20 to 30°C

Relative Humidity

30% - 70%, non-condensing

Electricity Request

Power

6000W 28A

Requirements

220 VAC, single-phase, 50Hz

Warranty

One year limited warranty(Please contact your local dealer for details)
