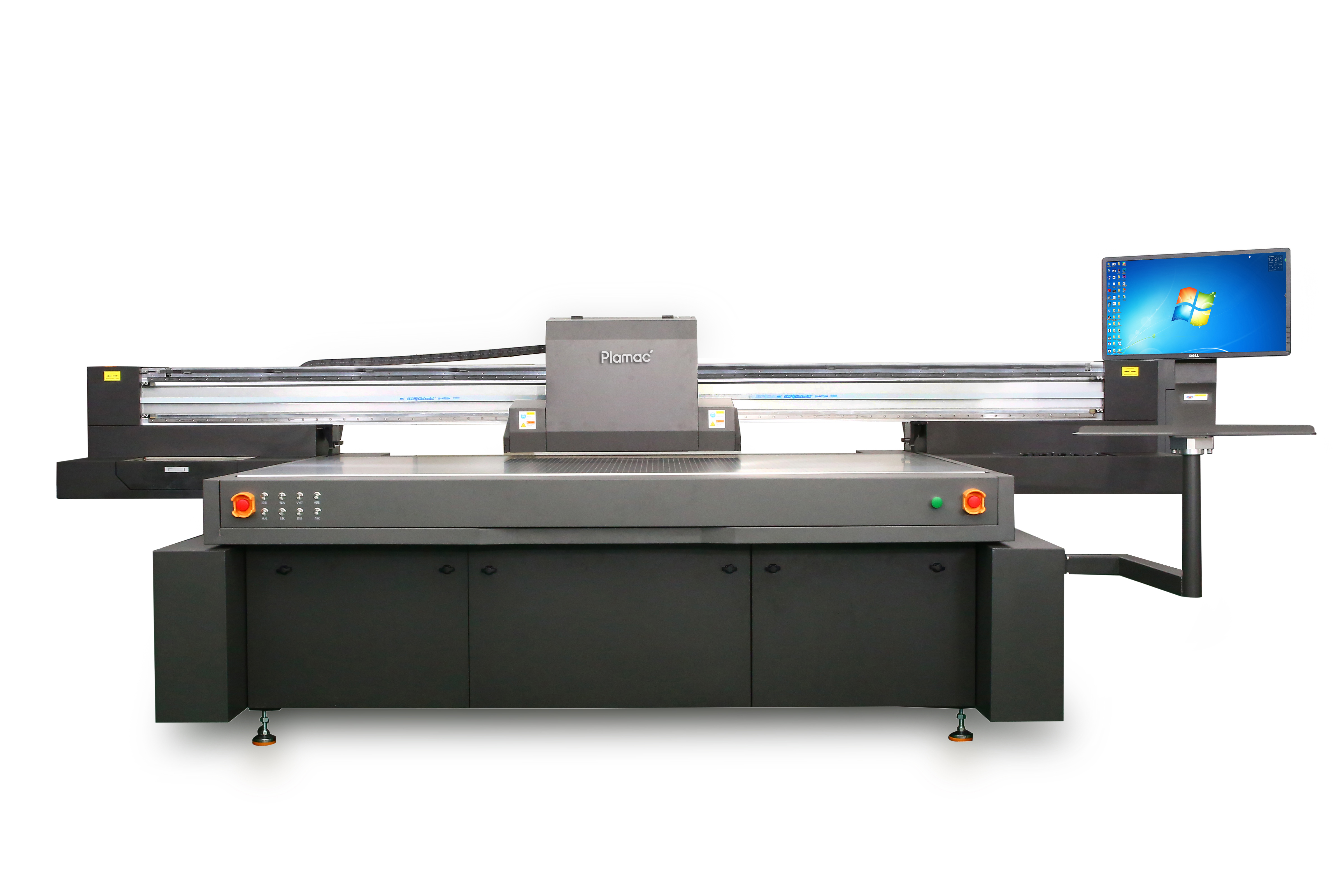

MORPHO 2512UV flatbed printer is the most reliable flatbe printing solutions after a accumulation of 15years+ technical research & development, with a extremly high precision platform structure, CMYK+Lc+Lm+White/Vanish fullfill the application to the max,purpose for most variety of flatbed media application with best photo finishing.

Description

Double linear guide and strengthed carriage bean to ensure the best movement, perfectly locates the prints either on hard or flexible material at difference limited within 0.02-0.05mm.

Anti-static devices equippped to eliminate bad influence from printing.

Print head auto capping system,auto height adjustment, individual color channel to purge.

4 individual suction area by electronic control,applicable to most variable media size

Electronic control shift for platform suction & blower, easy load & unload the media

High precision platform with user-friendly dividing ruler

Precisely synchronised with the double Y-axis, mostly reliable design with PLAMAC patent

White ink recycling system to keep white printing consistency and none of blockage.

Double negative pressure system for colors and white respectively,to keep the fluency.

Features

1. Grayscale printing technology with variable drop sizes minimum from 7pl to 21pl, result in photographic finish

2. Extremely wide application on Acrylic, wood, glass, ceramic, metal, leather, PVC, industrial film, etc

3. Up to 16 kinds of white printing mode with base, cover, spot, etc

4. 3 kinds of special vanish application

5. Three or more layers printing, can print color + white + color simultaneously

6. CMYK+Lc+Lm+White/Vanish or 4 lines print head by interlace fullfill the application or the speed to the max at one printer

7. Adopted from grayscale printing technology, ink saving up to 30-50% thru jetting control of various ink drop size.

8. Environmental friendly LED UV ink
